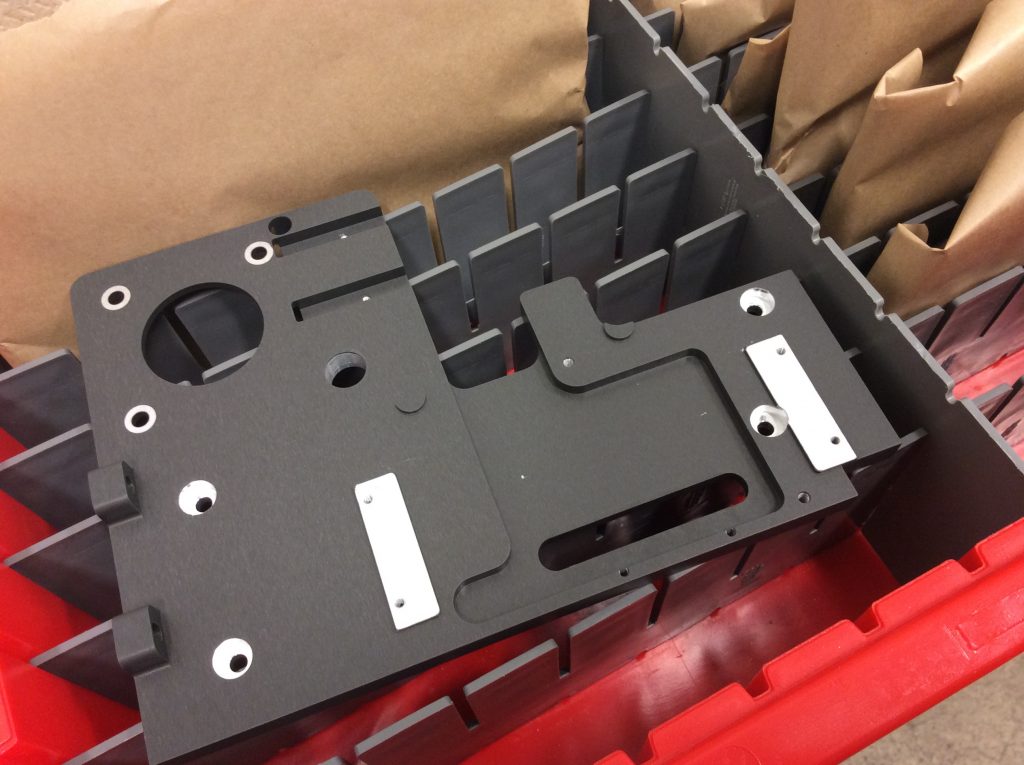

Hard Anodize

Hard Anodize provides the most protection and functionality. Structurally identical to Type II anodic films, though much thicker and denser, hard anodize offers superior durability in terms of abrasion resistance and a hardness second only to a diamond. The hard anodize chemical and physical properties are nearly identical to sapphire.

Note: Type III anodic films are considered to be “1 in, 1 out” meaning that roughly 50% of the deposit is invested into the parent material while 50% will result in dimensional growth. A hardcoat thickness of .002″ will result in .001″ per side of dimensional growth. For other facts and design considerations, visit matweb.com.

IMG_0746

Process Values:

Superb abrasion resistance – 65 to 70 Rockwell C
Excellent thickness control from .0005″ to .002″
High dielectric strength – 1000VDC per .001″ thickness
Dyes available are very dark (natural hardcoat is dark)

Certified for the following specifications:

Mil-A-8625, Type III, Class 1 & 2
AMS-2469 Hard Anodize
AMS-2482 Hard Anodize with Teflon

IMG_0743

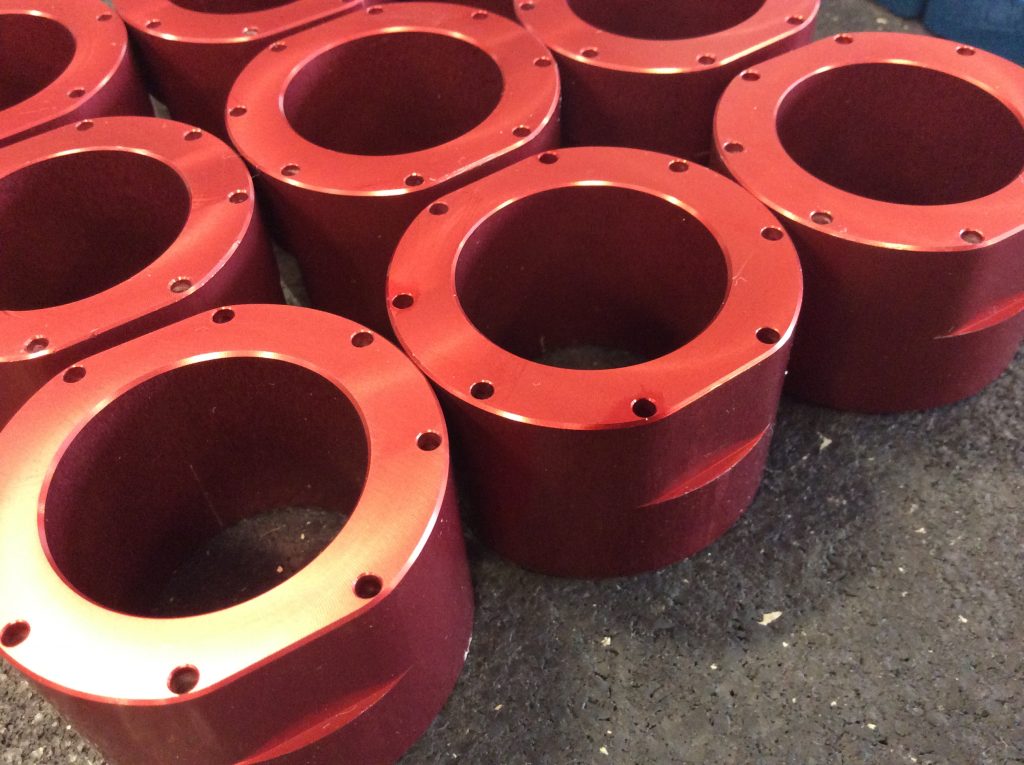

Sulfuric Acid Anodize

Sulfuric Acid Anodizing provides a crystalline oxide coating on aluminum, which may be transparent or dyed a variety of colors. Depending on alloy and whether dyed or clear, coating will add .0001″ to .0005″ thickness of dimension per surface.

Process Values:

Excellent decorative coating that is transparent and easily maintained
Class 2 can be provided with Dyes: Black, green, red, blue, gold & orange.
Moderate abrasion resistance
Good corrosion resistance
Non-conductive and non-toxic coating

Certified for the following specifications:

Mil-A-8625 Type II Class 1 & 2
AMS-2471 Clear Anodize with Dichromate Seal
AMS-2472 Black Anodize

Chromate Conversion Coating

Chromate Conversion Coating (Chemical Film) covers aluminum parts with a chemical film that provides corrosion protection and facilitates adhesion for paints or powder coating. Chemical film is very thin and adds no appreciable dimension to the parts.

Note: this film is not intended to be a cosmetic finish. Many factors including alloy influence the appearance such that not every part will look exactly like the next one (6.8 of Mil-dtl-5541f).

chem-film

Process Values:

Clear and yellow Chromate available
Good corrosion resistance
Poor abrasion resistance
Excellent paint base – does not add dimension
Electrical conductive coating
Type 1A coatings: thicker/heavier, designed to be stand-alone protection
Class 3 coatings: thinner, well suited for paint/coating adhesion and electrical conductivity
Coating is also available in a trivalent, RoHS compliant version.

Certified for the following specifications:

Mil-C-5541 Type I Class 1A & 3 (clear & yellow)
Mil-DTL-5541 Type II Class 1A & 3
AMS 2473 (yellow)

ndt-hardcoat

Fluorescent Penetration Inspection (NDT)

Fluorescent Penetrant Inspection (FPI) is a Non Destructive Testing (NDT) technique where a fluorescent dye is applied to the surface of an impermeable material to clearly identify surface defects. The inspection process is performed by trained and certified inspectors using a visual examination. When working with fluorescent penetrants, indications must be viewed under darkened conditions with a high-intensity UV lamp or black light. Testing with a visible dye requires sufficient white light. The sample will be accepted or rejected based on the specification or acceptance criteria from the purchase order. The inspector also will attempt to determine the origin of the discontinuity, if required.

Process Steps:

1. Pre-cleaning
2. Penetrant application
3. Penetrant dwell time
4. Penetrant removal
5. Developer application
6. Developer dwell time
7. Inspection
8. Post-cleaning

Accredited to perform the following:

AC7108/15 Rev A - Pre-Penetrant Etch
AC7114 Rev M - NDT
AC7114S Rev N - NDT (S-U1 Honeywell)
AC7114/1 Rev L - Facility Penetrant Survey
AC7114/1S Rev M - Penetrant Suppliers Accreditation (S-U1 Honeywell)
